Made in the USA
Expert sizing support
NSM

National Safety Mirror

Outdoor Acrylic Convex Mirror — Galvanized Steel Back

Product specs

Features and technical details

  • ✓Wide-angle convex field of view
  • ✓Suitable for outdoor applications
  • ✓Made in the USA
  • ✓Multiple orderable configurations

Convex Mirrors for Security and Safety Applications · Driveway Mirror & Traffic Mirrors

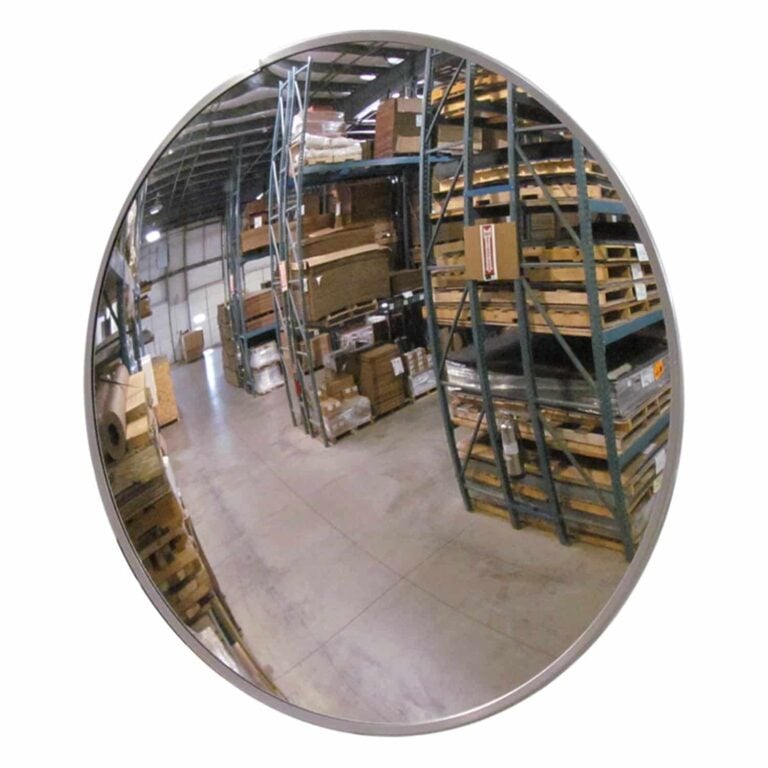

Outdoor Acrylic Convex Mirror — Galvanized Steel Back

SKU CVO-GB

From$77.28

Starting configuration

12″Z-bracketup to 12 ft

Starts at $77.28 for the 12″ / z-bracket build. Larger sizes and wind-rated brackets update the final price in the live options table below.

14 configurations available. Choose your size and bracket in the options table below to lock the exact SKU and final price.

Our standard outdoor convex mirror for everyday traffic and facility use. Commonly used in parking garages, as a traffic mirror, and at dangerous intersections to prevent accidents.

  • •160° field of view
  • •Approximately 15× the impact resistance of glass; material comparison varies by grade and test.
  • •Galvanized Steel backing
  • •Handmade in the USA

Best for

Convex Mirrors for Security and Safety ApplicationsDriveway Mirror & Traffic MirrorsWarehouse blind cornersParking exits

Sizing help

Use roughly 1 inch of round mirror diameter per 1 foot of viewing distance as a starting estimate. Confirm the sightline, mounting position and mirror size for your location.

Specifications

Lens material
Acrylic
Impact resistance
Approximately 15× the impact resistance of glass; material comparison varies by grade and test.
Field of view
160° convex
Use
Outdoor (also indoor)
Backing
Galvanized Steel
Sizes
12″ · 18″ · 26″ · 30″ · 36″
Brackets
Z · Single T · Double T · Triple T
Made in
USA

Outdoor Acrylic Convex Mirror — Galvanized Steel Back — at a glance

  • Available sizes 12 inch · 18 inch · 26 inch · 30 inch · 36 inch
  • Lens material Acrylic
  • Backing Galvanized Steel
  • Mounting options Z Style Bracket · Telescoping Bracket
  • Mirrors are made to order in Sturgis, Michigan. Some common mirrors may be available sooner. Made-to-order mirrors are typically ready to ship within 4–9 business days.

Available options · 14 SKUs

Pick your size & bracket.

Every configuration ships with the bracket included. Not sure which to choose? Use the sizing guide or talk to an expert.

Size:
Bracket:
⌕
PreviewSKUSizeBracketCovers*PriceDescriptionQtyAdd
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
SCVO-12Z-GB
12″Z-bracketup to 12 ft
$80.95
$77.28
12 inch Acrylic Convex Mirror with Single Z Style Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
SCVO-18Z-GB
18″Z-bracketup to 18 ft
$132.95
18 inch Acrylic Convex Mirror with Single Z Style Bracket & Galvanized Steel Backing
Driveway Mirror and Traffic Mirrors
SCVO-18T-GB
18″Single telescopingup to 18 ft
$157.95
18 inch Acrylic Convex Mirror with Single Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
DCVO-18T-GB
18″Double telescopingup to 18 ft
$157.95
18 inch Acrylic Convex Mirror with Double Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
SCVO-26Z-GB
26″Z-bracketup to 26 ft
$269.95
26 inch Acrylic Convex Mirror with Single Z Style Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
SCVO-26T-GB
26″Single telescopingup to 26 ft
$248.95
26 inch Acrylic Convex Mirror with Single Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
DCVO-26T-GB
26″Double telescopingup to 26 ft
$264.95
26 inch Acrylic Convex Mirror with Double Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
TCVO-26T-GB
26″Triple telescopingup to 26 ft
$281.95
26 inch Acrylic Convex Mirror with Triple Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
SCVO-30T-GB
30″Single telescopingup to 30 ft
$335.95
30 inch Acrylic Convex Mirror with Single Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
DCVO-30T-GB
30″Double telescopingup to 30 ft
$351.95
30 inch Acrylic Convex Mirror with Double Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
TCVO-30T-GB
30″Triple telescopingup to 30 ft
$368.95
30 inch Acrylic Convex Mirror with Triple Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
SCVO-36T-GB
36″Single telescopingup to 36 ft
$497.95
36 inch Acrylic Convex Mirror with Single Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
DCVO-36T-GB
36″Double telescopingup to 36 ft
$516.95
36 inch Acrylic Convex Mirror with Double Telescoping Bracket & Galvanized Steel Backing
Outdoor Acrylic Convex Mirror with Galvanized Metal Back
TCVO-36T-GB
36″Triple telescopingup to 36 ft
$475.95
36 inch Acrylic Convex Mirror with Triple Telescoping Bracket & Galvanized Steel Backing

* Coverage estimate uses the 1-inch = 1.5-foot guideline from the NSM sizing guide.

Ordering multiple SKUs or larger volume?

We can quote mixed-SKU orders, help choose the bracket mix, and check freight before you place the order.

Product details

Everything you need to know

Mounting & installation+

All brackets ship with mounting hardware and instructions. Most installations take under 15 minutes.

  • •Z-bracket — small indoor mirrors (12″–20″), close-wall mount with pivot-ball aiming.
  • •Single telescoping T-bracket — recommended for 12″–24″ outdoor mirrors.
  • •Double telescoping — recommended for 26″–30″ outdoor mirrors.
  • •Triple telescoping — recommended for 32″–48″ outdoor mirrors, high-wind locations, or 36″+ mirrors.
Shipping & returns+
  • •Made-to-order mirrors are typically ready to ship within 4–9 business days.
  • •For non-warranty returns, request an RMA within 30 days of delivery. Approved returns must be new and in their original packaging; a 25% restocking fee and buyer-paid return shipping apply.
  • •Volume orders (10+ units): request a freight quote, with a reply within 1 business day.
  • •Secure payments via all major cards and ACH.
FAQ+

What’s the difference between Z and telescoping brackets? Z-brackets are close-wall indoor mounts with pivot-ball aiming behind the mirror. Telescoping brackets adjust from 14.5″ to 21.5″ and are the right choice for outdoor, pole, and larger-mirror installs.

Does acrylic yellow in the sun? Our acrylic is UV-stabilized. Unlike low-grade imported mirrors, it will not haze or yellow over normal outdoor life.

Can I get a custom SKU? Yes — if your size, backing, or bracket is not listed, contact us for a custom quote.

Need help picking the right SKU?

Our U.S.-based team can help size the mirror, choose the bracket, and quote the order.

Mounting & installation

Convex Mirror Size: 12 inch, 18 inch, 26 inch, 30 inch, 36 inch

Bracket Type: Z Style Bracket, Telescoping Bracket

Qty of Brackets: Single, Double, Triple

Lens Type: Acrylic

Backing: Galvanized Steel

Indoor/Outdoor: Outdoor Rated

Shipping & returns

Made-to-order mirrors are typically ready to ship within 4–9 business days.

For non-warranty returns, request an RMA within 30 days of delivery. Approved returns must be new and in their original packaging; a 25% restocking fee and buyer-paid return shipping apply.

Report shipping damage within seven business days of delivery.

If you need a bulk quote, project guidance, or confirmation before ordering, you can request a bulk quote or call NSM at 678-214-3440 before checkout.

FAQ

How long do mirrors take to ship?

Inspection mirrors typically ship within 3–5 business days. Other mirrors are made to order in Sturgis, Michigan, and are typically ready to ship within 4–9 business days. Some common mirrors may already be available; contact NSM for current shipment times.

Sources: National Safety Mirror shipping policy

How do acrylic and polycarbonate compare for impact and scratching?

Impact resistance describes resistance to a strike or shattering; it does not describe surface hardness or scratch resistance. NSM uses approximate material comparisons of 15× glass for acrylic and 250× for polycarbonate. Published figures vary by grade, thickness and test: Advanced Plastiform, for example, cites about 10× for acrylic and 250× for polycarbonate. Acrylic is generally more scratch resistant than uncoated polycarbonate, while glass is harder at the surface. These material comparisons are not a model-specific test rating or a bullet-resistance certification.

Sources: KastLite: acrylic versus polycarbonate · Advanced Plastiform: impact and scratch resistance · Palram: polycarbonate glazing material comparison

What are the return and warranty terms?

Report shipping damage within seven business days of delivery. For non-warranty returns, request an RMA within 30 days of receipt and return the merchandise within 30 days after the RMA is issued. Approved returns must be new and in original packaging; a 25% restocking fee and buyer-paid return shipping apply. Special, discounted, large-quantity and ALL SALES FINAL orders are excluded as detailed in the Returns policy. The manufacturer provides a one-year replacement warranty for defects in material or workmanship under normal use and care, subject to its full warranty terms.

Sources: National Safety Mirror returns policy · National Safety Mirror manufacturer warranty · National Safety Mirror shipping policy

How should I clean and care for an acrylic mirror?

Use spray wax or plastic polish on the front surface and wipe with a clean, soft cloth. Do not use glass cleaners. Washing with a soft cloth works, but repeated washing can gradually create fine scratches. Read the Acrylic Mirror Care guide for cleaning, drilling, and fastener precautions.

Sources: SDM Acrylic Mirror Care

How do I choose the right mirror for my space?

Start with the application — driveway exit, warehouse aisle, blind intersection, retail surveillance, or vehicle inspection — then size by viewing distance using the 1 inch of diameter per 1 foot of viewing distance rule. If you'd like a recommendation, contact NSM with your installation context and we'll narrow the right size, lens, backing, and mount.

What if I need help picking the exact configuration?

Use the live options table above to compare every purchasable row by size, bracket, and price. If you're between two configurations, contact NSM directly before checkout — bulk pricing, government quotes, and project-specific sizing guidance are all available at no charge.

See more questions in the full FAQ.
