Compare standard convex mirrors
See how the 180° DomeVex compares with a standard 160° convex mirror.
Patented 180° hybrid mirror
DomeVex Mirrors — A Full 180° View From a Single Convex Mirror
DomeVex is a patented hybrid safety mirror: it pairs the wide field of view of a dome mirror with the clarity and vertical mounting flexibility of a convex mirror. One DomeVex sees a full 180° — up to 100 feet in all directions — so it covers both directions where a conventional convex mirror needs two. The viewing area is three times that of a standard convex mirror, which makes it the right pick for driveways, blind intersections, loading docks, and complex blind spots.
180°
field of view
3×
the area of a standard convex
16″–42″
diameters
100 ft
view in all directions
1One Mirror Sees Both Directions
2Indoor And Outdoor Models, 16″ To 42″
31, 2, Or 3 Telescoping Brackets
DomeVex vs standard convex
Why one DomeVex replaces two convex mirrors
A conventional convex mirror is aimed at one direction of travel, so covering an intersection or a two-way driveway takes a pair. DomeVex covers both from a single vertically mounted mirror.
Standard convex mirror
Conventional
Field of view: About 160°, one main direction
Mirrors needed: 2 to see both directions
Viewing area: Baseline
Border: No flat border
vs
DomeVex hybrid mirror
Patented
Field of view: A full 180°, up to 100 ft in all directions
Mirrors needed: 1 to see both directions
Viewing area: 3× a standard convex mirror
Border: Continuous flat border for rigidity
See how DomeVex expands the view beyond a standard convex mirror
The first view shows a standard convex mirror. The second view shows the DomeVex hybrid mirror and its wider 180-degree viewing angle for driveways, intersections, loading docks, and complex blind spots.
DomeVex side-by-side viewing comparison from National Safety Mirror.
Related guides
Guides for choosing the right mirror
These links keep this category connected to the matching guide, adjacent mirror family, or installation help page instead of forcing a broad restart.
Convex mounting guide
DomeVex mounts vertically on Z or telescoping brackets, so the convex bracket guidance applies.
Outdoor traffic mirrors
Mirrors built for driveways, road approaches, and parking lot exits.
Read driveway & traffic mirror articles
Placement and sizing advice for outdoor driveway and traffic mirrors.
Mirrors by facility
Where domevex mirrors go in a real building
Each page walks one kind of facility: the blind spots, the mirror for each one, the size to order, and how it mounts.
Mirrors for restaurants
The mirror that pays for itself fastest in a restaurant is the one over the kitchen door.
Mirrors for convenience stores
A convenience store needs two kinds of mirror: a dome mirror or DomeVex wide-view mirror mounted where the clerk can see the whole sales floor from the register, and smaller convex mirror…
Mirrors for swimming pools
A pool safety mirror is an acrylic convex mirror on a plastic back mounted where a lifeguard or a parent cannot see: behind a water slide, under the guard chair, around a column or a wall…
Mirrors for parking garages
A parking garage needs a convex mirror at every point where a driver has to commit to a turn without seeing what is around it: ramp turns, the exit onto the street, aisle corners at colum…
2 products
showing all results
No products match these filters.
Try removing a filter or browse all products in this category.
Clear filters
Free sizing help
Not sure which mirror is right for your space?
Send us a photo and an American-based specialist can usually recommend the exact model, size, and mount for your space — free, with no obligation.
What makes a DomeVex different
DomeVex is the only convex-style mirror we carry that is built around a continuous flat border — the detail that lets it hold a 180° curve and still stand up to wind.
Feature
A continuous flat border
DomeVex is the only convex-style product with a flat border running the whole way around the mirror, which is what gives the face its rigidity.
Feature
Built for weather
Outdoor models use high-impact plastic backs held in an aluminum “U” channel — made for regional and seasonal high winds.
Feature
Vertical mounting with adjustment
Unlike a dome, a DomeVex mounts vertically on brackets and aims like a convex mirror, so you can point the view where the hazard actually is.
Feature
1, 2, or 3 telescoping brackets
Three brackets evenly spaced is the best defense against Mother Nature. Z-brackets and single or double telescoping mounts cover lighter-duty sites.
How to choose the right DomeVex
Four questions settle most DomeVex orders: where it mounts, how far you need to see, how much wind it takes, and whether it lives indoors or out.
1
Confirm It Is A Both-Directions Problem
DomeVex earns its keep where you need to watch two directions at once — a blind driveway exit, a four-way aisle, a dock lane. For a single-direction blind spot, a standard convex mirror is usually the more economical pick.
2
Match Diameter To Viewing Distance
DomeVex comes in 16″, 24″, 32″, and 42″. The larger the diameter, the further the usable view — the 42″ indoor/outdoor model gives the largest viewing area in the industry.
3
Choose Indoor Or Outdoor
Indoor models suit warehouses, docks, offices, and restaurants. Outdoor models add the high-impact plastic back and aluminum “U” channel that handle sun, rain, and wind.
4
Pick The Bracket Count For Your Wind Load
One bracket is fine for a sheltered indoor run. Exposed outdoor posts and larger diameters want two or three telescoping brackets — three evenly spaced is the most wind-resistant setup.
DomeVex sizing
DomeVex sizes and where they fit
All four diameters deliver the same 180° hybrid view — diameter drives how far away you can still read the reflection.
| Diameter | Depth | Typical fit |
|---|---|---|
| 16″ | 4″ | Indoor aisles, tight dock corners, garage exits |
| 24″ | 5″ | Driveway exits, warehouse intersections, restaurant corners |
| 32″ | 7″ | Larger yards, dock approaches, longer sightlines |
| 42″ | 8″ | The largest viewing area in the industry — complex outdoor intersections |
Indoor and outdoor models are available in every diameter. A full 180° view reaches up to 100 feet in all directions.
Mounting Options for DomeVex Mirrors
DomeVex mirrors mount vertically like a standard convex mirror. Choose the bracket style that fits your wall, post, or pole — the same hardware works for every DomeVex diameter.

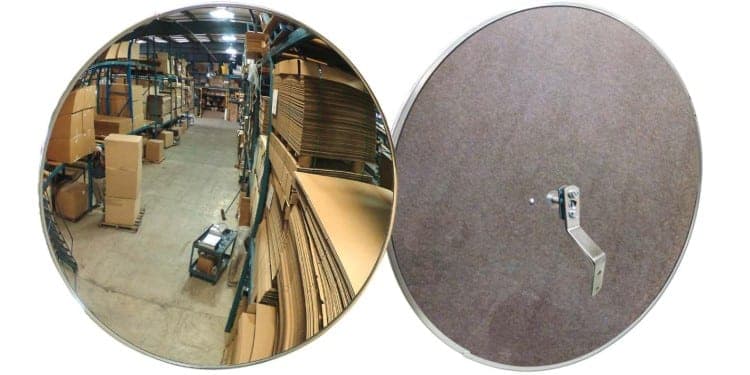

Z-Bracket Mount
A fixed wall bracket for smaller DomeVex mirrors in protected locations. The Z-bracket bolts directly to a flat surface and holds the mirror at a set angle. Best for indoor walls and columns where the viewing angle does not need field adjustment.

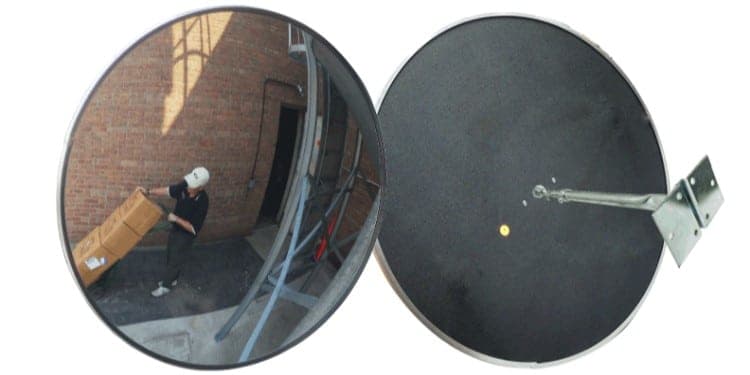

Single Telescoping Mount
One adjustable arm extends from the wall or post to the mirror. The telescoping arm lets you fine-tune the viewing angle after installation. Use a single arm for mirrors up to 26 inches in sheltered locations.

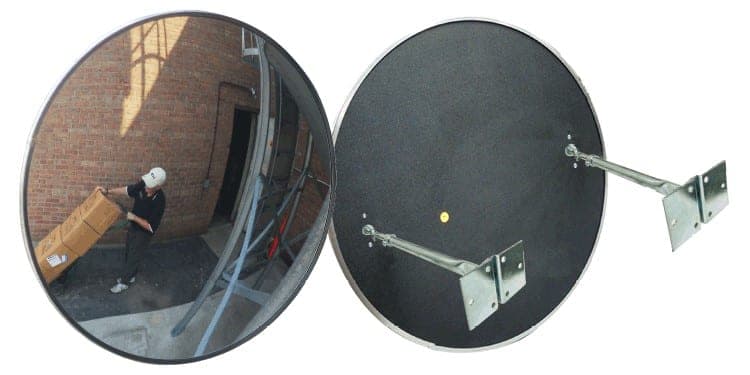

Double Telescoping Mount
Two arms share the load and reduce mirror sway in wind or vibration. Recommended for 26- to 36-inch DomeVex mirrors, especially outdoors where gusts can shift a single-arm mount over time.
DomeVex Backing Types
The backing protects the rear of the mirror and determines where it can be installed. DomeVex mirrors are available in two backing options.
Hardboard Backing
Lightweight and cost-effective for indoor installations. Hardboard is the standard backing for warehouses, hallways, and other dry, climate-controlled spaces.
- Indoor use only
- Lightweight — easy single-person install
- Most affordable option
Read the full backing guide
Heavy-Duty Plastic (HDPE) Backing
High-density polyethylene resists moisture, UV exposure, and temperature swings. HDPE is the right choice for any DomeVex mirror mounted outdoors or in damp, unheated environments.
- Indoor and outdoor use
- Moisture and UV resistant
- Will not rot, warp, or delaminate
Read the full backing guide
DomeVex mirror FAQs
What is a DomeVex mirror?+−
DomeVex is a patented hybrid safety mirror that combines the expanded field of view of a dome mirror with the clarity and vertical mounting flexibility of a regular convex mirror. It provides a full 180 degree view of up to 100 feet in all directions.
How is a DomeVex different from a standard convex mirror?+−
A conventional convex mirror covers roughly 160 degrees in one main direction, so seeing both directions takes two mirrors. One DomeVex sees both directions on its own, with three times the viewing area of a standard convex mirror. DomeVex is also the only convex-style product with a continuous flat border around the mirror for rigidity.
Is a DomeVex a dome mirror?+−
No. Despite the name, a DomeVex mounts vertically on brackets and aims like a convex mirror — it does not hang as a pendulum or screw flush to a ceiling the way full, half, and quarter dome mirrors do. It ships with Z-brackets or one, two, or three telescoping brackets.
What sizes do DomeVex mirrors come in?+−
DomeVex mirrors are available in 16 inch, 24 inch, 32 inch, and 42 inch diameters, in both indoor and outdoor models. The 42 inch indoor/outdoor model provides the largest viewing area in the industry.
How many brackets do I need for an outdoor DomeVex?+−
Outdoor DomeVex mirrors offer one, two, or three telescoping brackets. Three brackets evenly spaced is the best defense against regional and seasonal high winds; smaller or sheltered installations can use fewer.
Can a DomeVex be used outdoors?+−
Yes. Outdoor DomeVex models are built for weather, with high impact plastic backs contained in an aluminum U channel, and were designed specifically for outdoor traffic and security use in high winds.
Not sure if DomeVex is right for your site?
Tell NSM where the mirror mounts and what you need to see, and we will help you choose between a DomeVex and a standard convex mirror — plus the size and bracket count to go with it.
Blind driveway and alley exits
Four-way warehouse intersections
Loading docks and yard approaches
High-wind outdoor installations
